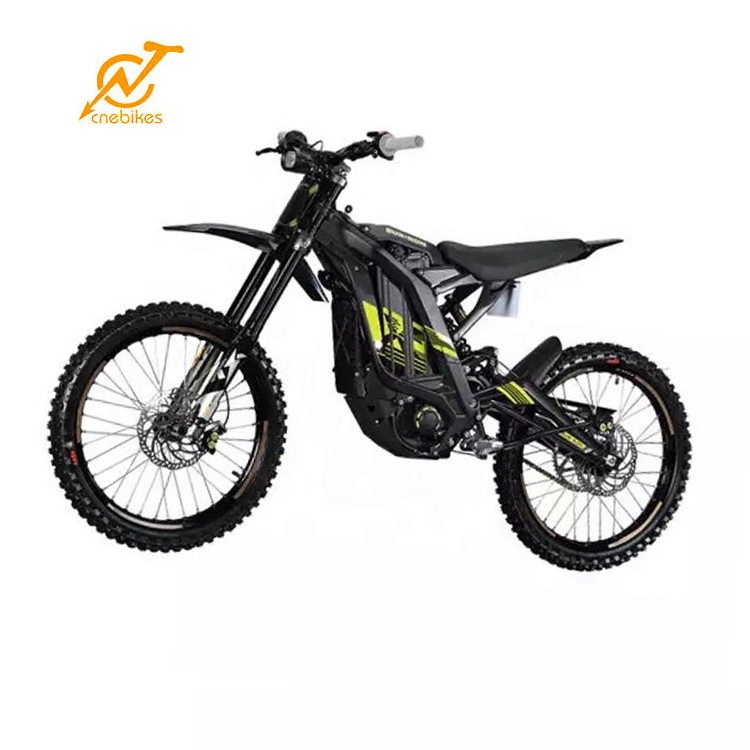

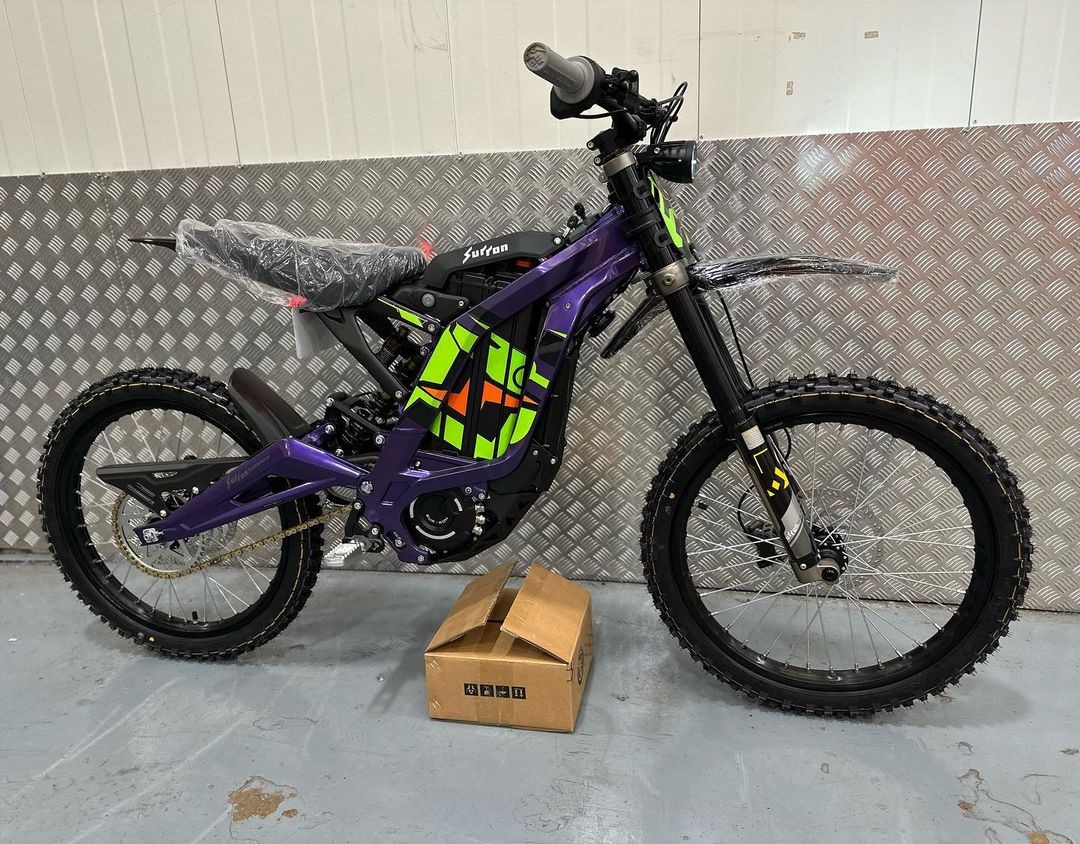

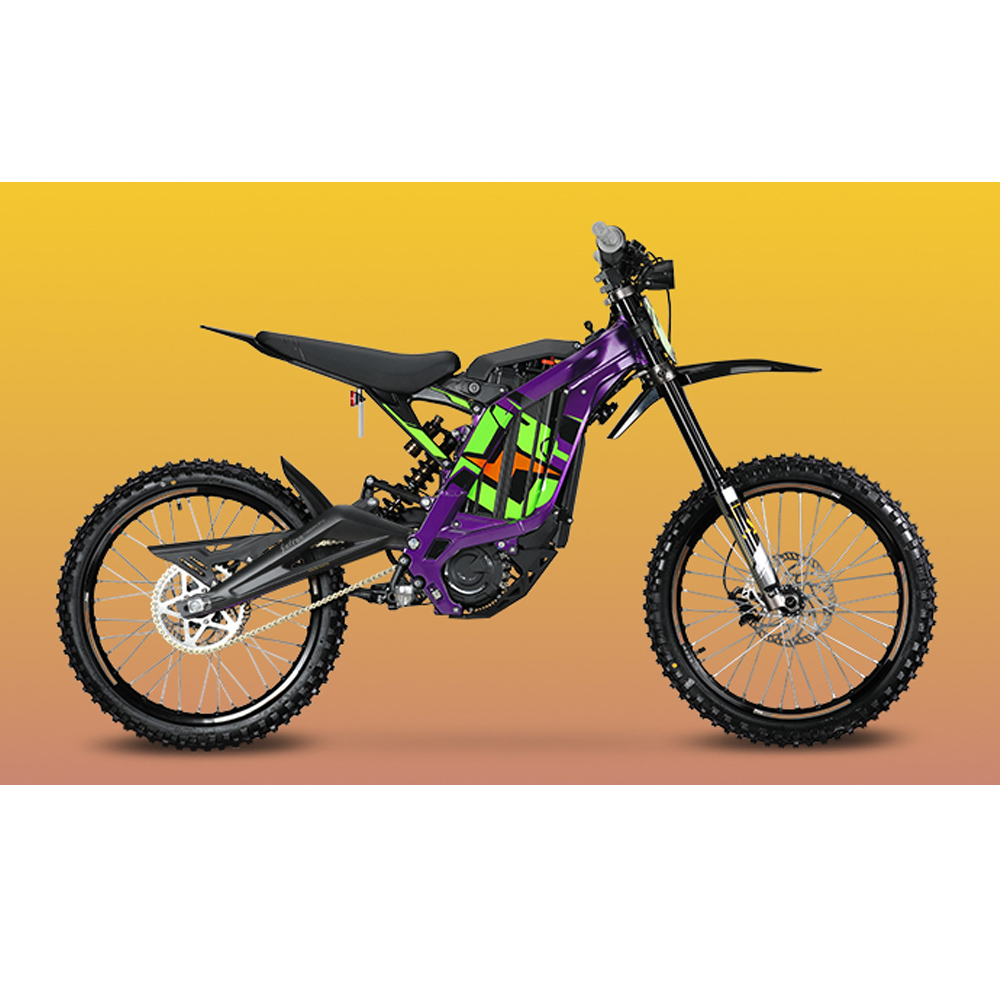

Original Sur Ron 2024 Light Bee Electric Dirt Bike Motocross Motorbike Off Road Motor Pitbike Electric Dirt Bike Ebike For Adult

详情1.jpg 详情2.jpg 详情3.jpg 详情4.jpg

Specification

NEWEST Light Bee X

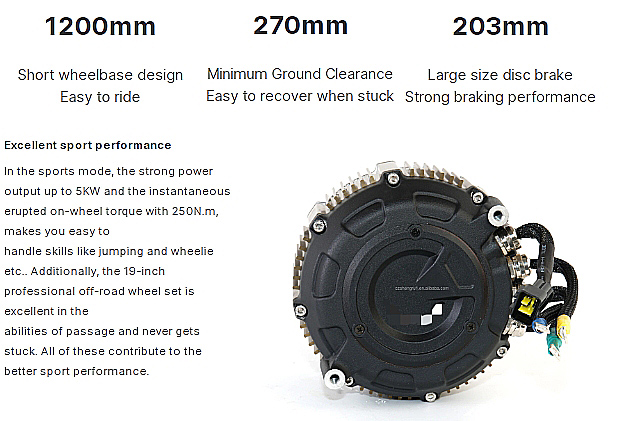

MOTOR
Motor Type	PMSM	Power	60V 6000W
Motor Axial Length	130mm	Weight	7kgs
Cooling Method	Air-Cooled	Peak Efficiency	95.6%
Motor shaft Output Torque	35.40 N.M	Rated Rotation Speed	4300rpm
CONTROLLER
Controller Type	X Version Sine Wave	Dimensions	240mm x 110mm x 50mm
Peak Efficiency	98.5%	Power Modes	Eco and Sport
ELECTRICAL COMPONENTS
Battery	60v 38.5ah (SAM)	Battery Life	500 Cycles
Battery Indicator	Integrated LCD Display	Charger	10A
Charging Time	2.5-3.5 Hours	USB Connection	Single USB-2.1 A Socket

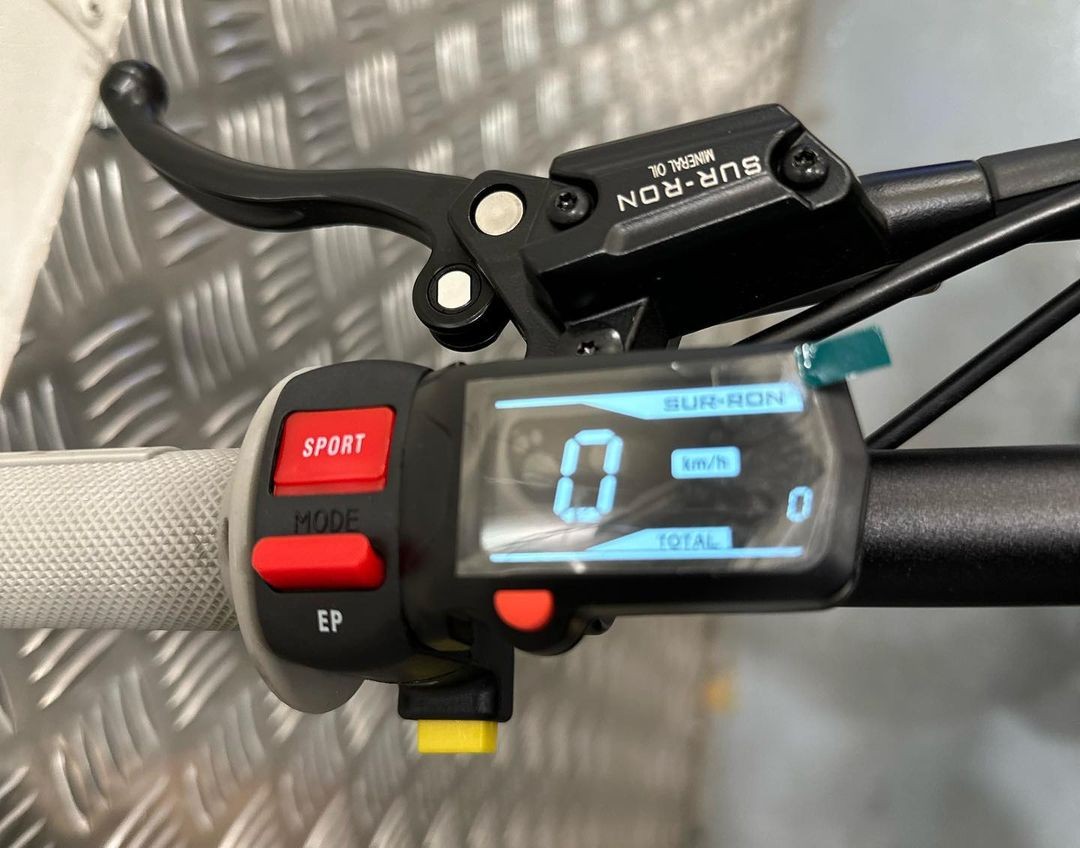

Headlight & Rear Light	LED	Speedometer	LCD Digital Speedometer
TRANSMISSION
Gear Ratio	1:7.6	Transmission	Primary Belt & 420 Drive Chain
VEHICLE
Chassis & Swingarm	Forged Aluminum	Chassis Surface	Anodic Oxidation

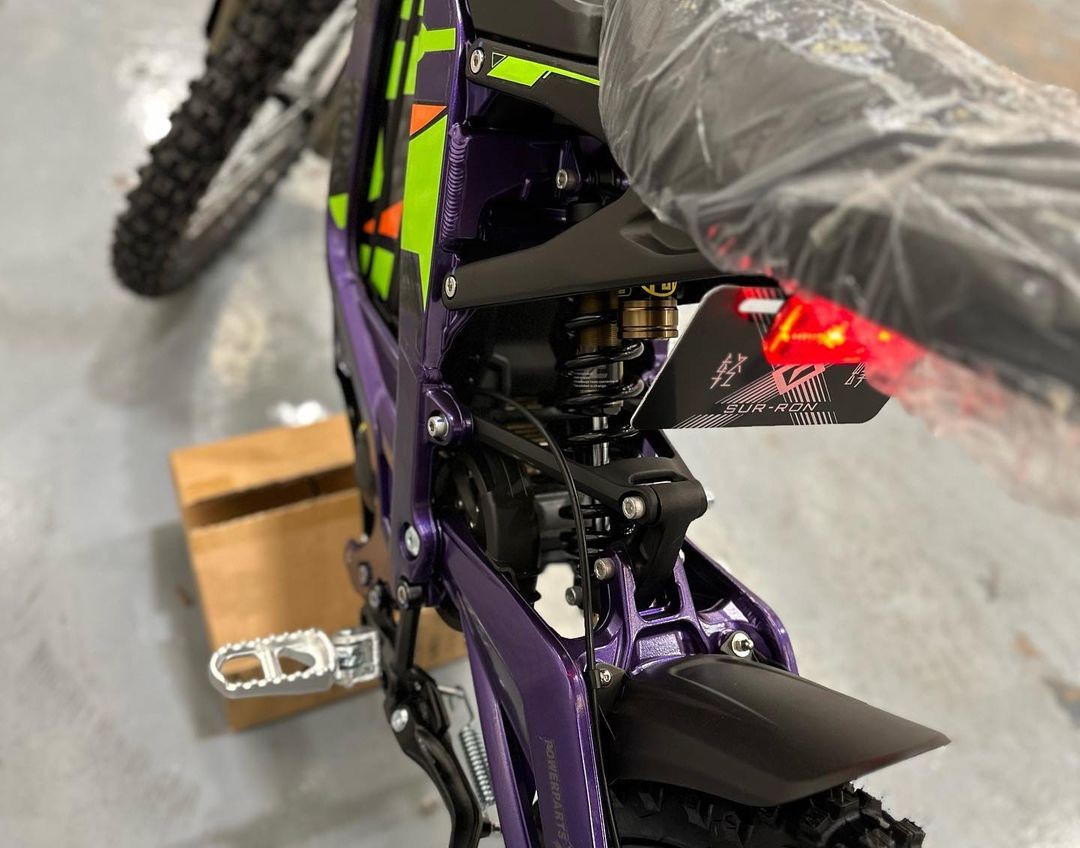

Rear Shock Absorber	KKE or DNM Shock with TR Suspension Link System	Wheel Type & Size	19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs
Tire Size	70/100-19 Front/Rear	Max Range	100km @ 32km/h depending upon terrain
Net Weight	47kg (Plus Battery)	Max Load	100kg (220 lbs.)
Max Climbing Angle	45 degrees	Rear Sprocket	48t
Vehicle Dimensions	1,870mm x 780mm x 1,040mm	Minimum Ground Clearance	270mm
Wheelbase	1,260mm	Seat Height	84-88cm
