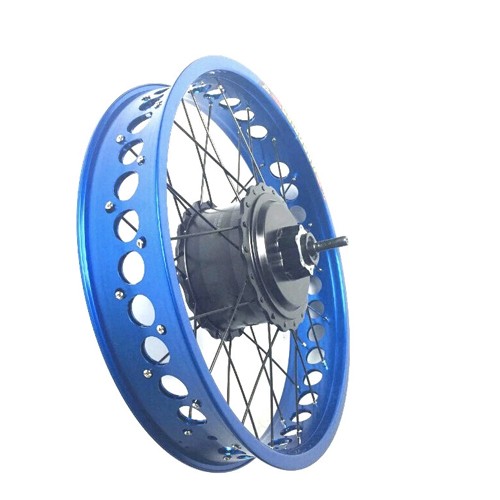

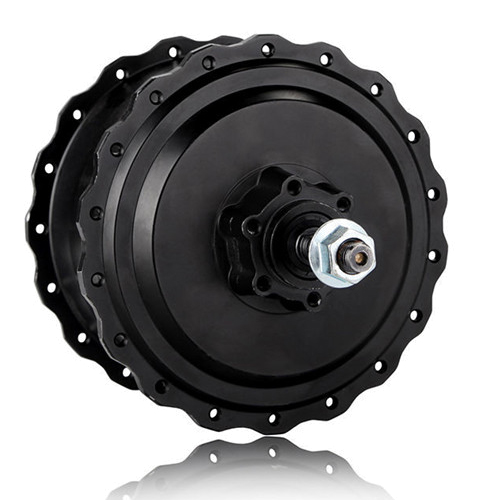

Rear Wheel 36V/48V 350W/500W/750W H06 Brushless Geared Motor
  • E-mail: info@cnebikes.com
  • Brief Introduction:
    This CNEBIKES H06 rear-drive geared motor , which is compatible with the disc brake, has a rated power of 350-750W, a reduction ratio of 1: 5 and a maximum torque of 80 N.m, providing ideal power for vehicles. Strong and efficient, this motor, working together with a cassette or freewheel speed change mechanism, greatly enhances riding comfort and is suitable for beach buggies...
  • Inquiry Now
    • Rear Wheel 36V/48V 350W/500W/750W H06 Brushless Geared Motor
    • Rear Wheel 36V/48V 350W/500W/750W H06 Brushless Geared Motor
    • Rear Wheel 36V/48V 350W/500W/750W H06 Brushless Geared Motor
    • Rear Wheel 36V/48V 350W/500W/750W H06 Brushless Geared Motor





Technical Parameters



CNEBIKES H06 fat bike motor

  Rated Power   350W  500W

  750W

  Nominal Voltage   36V/48V  36V/48V  48V
  Position   Rear Motor  Rear Motor  Rear Motor
  Construction

  Brushless Geared Motor

  Brushless Geared Motor

  Brushless Geared Motor

  RPM   300 330
  180-420
  Max Torque

  30N.m

  45N.m  50N.m
  Efficiency   80%  80%  80%
  Hall Sensor

  With

  With

  With

  Axle

  135mm/170mm/190

  135mm/170mm/190

  135mm/170mm/190
