Front Rear Wheel 36V/48V 350W/500W HPM Brushless Geared Motor
  • E-mail: info@cnebikes.com
  • Brief Introduction:
    HPM , cnebikes gear motor drive system with low total system cost, high reliability and adequate performance for high-volume production and application to electric bikes around the world . can be 350w-500w . also can be casstte
  • Inquiry Now
    • Front Rear Wheel 36V/48V 350W/500W HPM Brushless Geared Motor
    • Front Rear Wheel 36V/48V 350W/500W HPM Brushless Geared Motor
    • Front Rear Wheel 36V/48V 350W/500W HPM Brushless Geared Motor
    • Front Rear Wheel 36V/48V 350W/500W HPM Brushless Geared Motor



SPECIFICATIONS:


Rated Power : 350w/500W

Nominal Voltage :36V/48V

Position :Front /Rear Motor

Constrction : Brushless Geared motor

RPM: 280~380

Max torque :35~38N.M

Effciency :80%

Hall sensor :with

Axle:100mm/135mm

Brake :Disc brake

Cabling :Shaft center, Right

Spoke :12G

Black: Black

Holes :36 holes

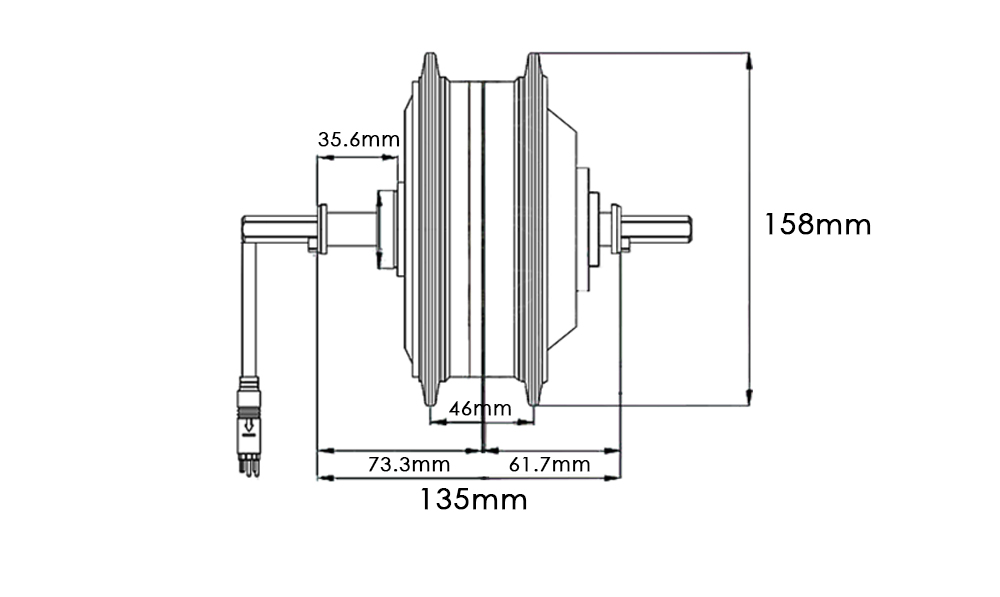

DIMENSIONS :
