Electric Bike 24inch 24V 180W 16AH 6km/h Electric Wheelchair Conversion Kit Attachment
    • Electric Bike 24inch 24V 180W 16AH 6km/h Electric Wheelchair Conversion Kit Attachment

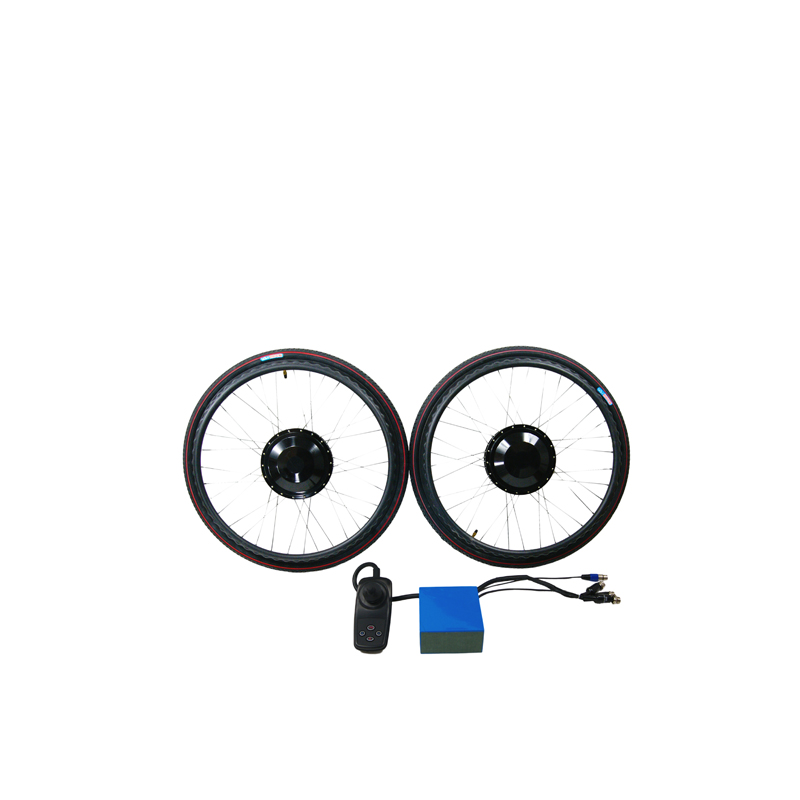

24inch 24V 180W Electric Wheelchair Kit


If you have the normal wheelcair, you can DIY with our electric wheelchair kit .Then you will enjoy the smooth journey on the electric wheelchair



Electric wheel chair kit details:

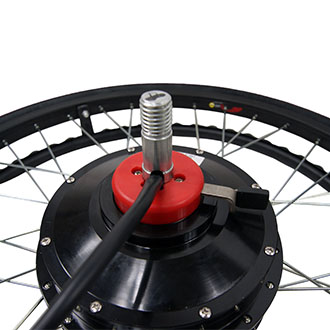

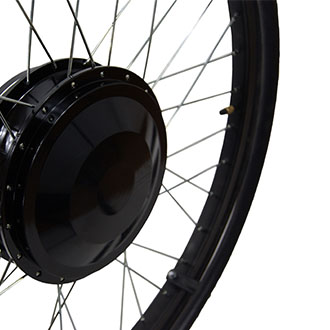

Integrated Motorized Wheel

Voltage: 24V

Power Rate: 180W

Built-in EMB Parking Brake

Manual Brake Release

Easy Replaceable Tire Design

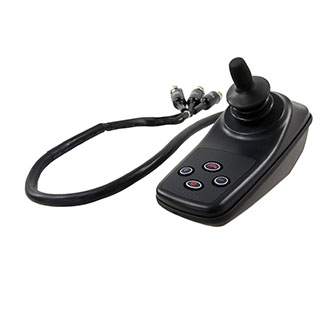

Brushless Joystick Controller (for dual brushless motors)  IM-50B

1)All-in-One, programmable Controller

2)24Vdc, Rated Current ≤ 13Amps

3)5 Speed Settings

4)Regenerative Braking

5)Parking Brake Open Circuit Detection

6)Parking Brake Manual Release Microswitch Detection

7)Including all connectors to motors and charger

























24V 180W brush geared motor
Electric wheelchair controller

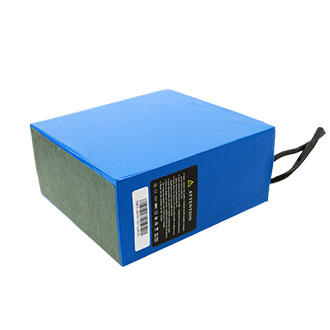

24V 16Ah lithium battery

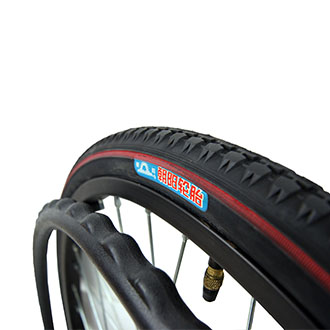

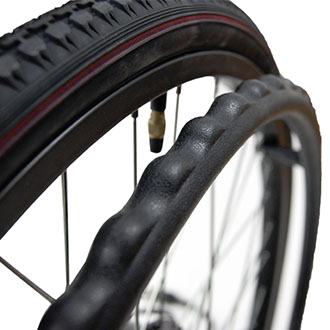

24inch chao-yang tyre
Brake apparatus

Ergonomic design armrest






Technical Parameters


Rated Power 180W
Nominal Voltage 24V
Battery 24V 16Ah Li-ion
Load 120kg
Wheel 24inch
Range 20km
Speed 6km/h
Climbing ability
Slope ability
