Bafang BBS01-02 Mid Drive Motor Kit

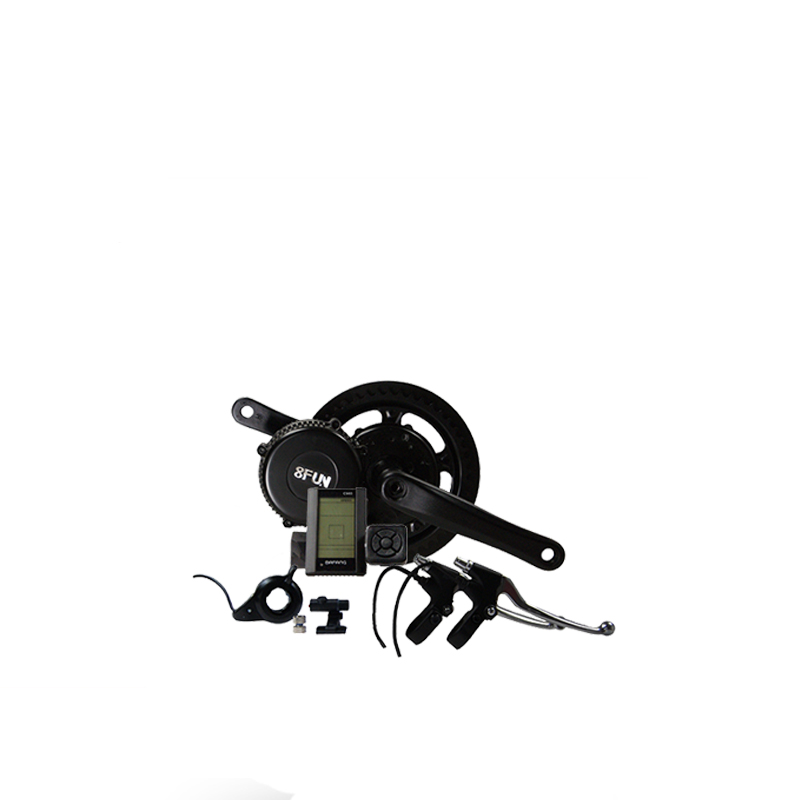

    • Bafang BBS01-02 Mid Drive Motor Kit


bafang bbs


BAFANG BBS0(MM G31) Mid Motor Kit


With an integrated speed sensor, this BBS(MM G31) mid-drive motor, which is compatible with standard bikes, has a rated power of 250W,350W and 500W, a reduction ratio of 1: 21.9 and a maximum torque of 80 N.m, providing ideal power for vehicles. This BBS(MM G31) mid motor need your bicycle bottom bracket is 68mm or 100mm.Light but strong and efficient, this BBS mid motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes. This BBS(MM G31) mid motor is black.



2.jpg BBS (MM G31) mid motor

3.jpg Crank

4.jpg Brake levers and thumb throttle

5.jpg Chain wheel and chain cover

6.jpg Waterproof connector

7.jpg Speed sensor

2801447319811855.jpg Screw and secure plate






Optional Display

3521447725826347.jpgC961771447725826821.jpgC963C965





Technical Parameters


  Rated Power

  250W  350W  500W  750W

  Nominal Voltag

  36V  36V/48V  36V/48V  48V

  Construction

  Geared Motor  Geared Motor  Geared Motor  Geared Motor

  RPM

  83-78  85-78  123-116  160-135

  Max Torque

  80 N.m  80 N.m  100 N.m  160N.m

  Efficiency

  80 %  80 %  80 %  80%

  Sensor

  Speed Sensor

  Hall Sensor

  Speed sensor

  Hall sensor

  Speed sensor

  Hall sensor

  Speed sensor

  Hall sensor

  IP-Code

  IP 65  IP 65  IP 65  IP 65

  Bottom Bracket

  68mm/100mm  68mm/100mm  68mm/100mm 68mm/100mm

  Chain Wheel

  44T/46T/48T/52T  44T/46T/48T/52T  44T/46T/48T/52T  44T/46T/48T/52T
