350W BAFANG MAX MM G33 MID DRIVE MOTOR KIT
    • 350W BAFANG MAX MM G33 MID DRIVE MOTOR KIT

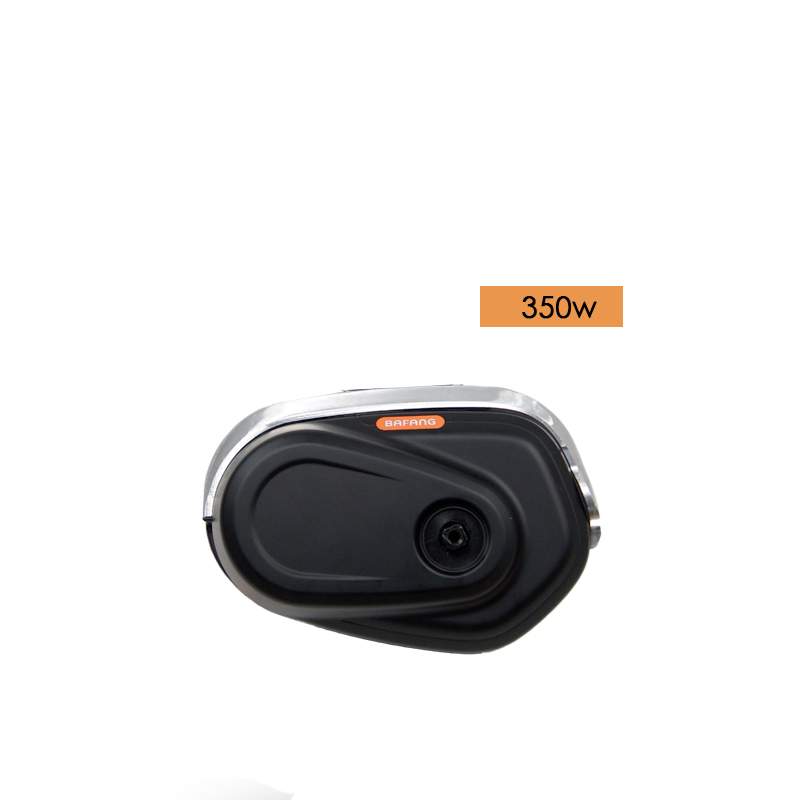

BAFANG Max (MM G33) Mid Motor Kit


The MM G33 max mid-drive motor constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive. The resulting data on crank torque, vehicle speed and the speed of rotation of the pedals is made available to the controller, ensuring precise control of the vehicle while achieving the highest possible efficiency. The MM G33 Max Drive System puts the rider in complete control. In spite of a generous power output and a maximum torque of more than 80 N.m, the motor operates in virtual silence. The modular motor design and integrated controller make disassembly easier and improve service responsiveness. This Max (MM G33) motor can be black, grey or sliver.


3.jpgMM G33 mid motor 4.jpgCrank 1.jpgC966 display



5.jpg 38T chain wheel

1.jpg Waterproof connector

2.jpg Speed sensor





Technical Parameters


   Rated Power   250W   350W
   Nominal Voltage   36V   36V
   Construction   Geared Motor   Geared Motor
   RPM   112-104   112-99
   Max Torque   80 N.m   80 N.m
   Efficiency   80 %   80 %
   Sensor

  Speed Sensor;Hall sensor

  Torque sensor

  Speed Sensor;Hall sensor

  Torque sensor

   IP-Code   IP 65   IP 65
   Chain Wheel   38T   38T
